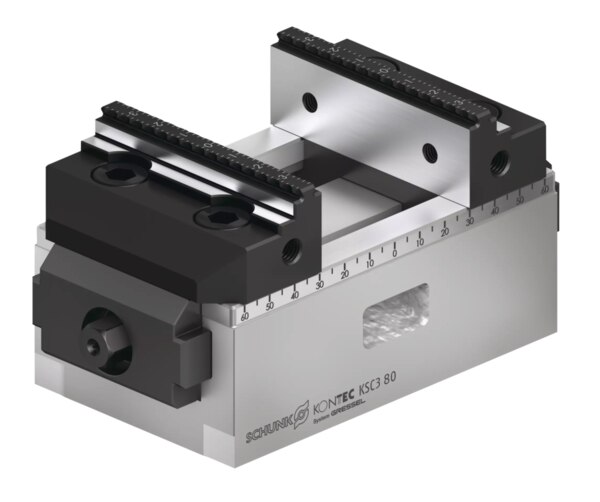

SCHUNK KSC3 grip 80-130 | w/ reversible grip jaws
Details
Standard centric clamping vises
Product features:
- With reversible grip jaws
- Nickel-plated base body
Technical data:
- Dimensions: 80 x 130 x 78 mm
- Jaw width: 80 mm
- Max. clamping force: 25 kN
- Max. torque: 90 Nm
- Weight: 3.9 kg
More Info
| Vise width [mm] | 80 |
|---|---|
| Jaw width [mm] | 80 |
| Max. clamping force [kN] | 25 |
| Max. torque [Nm] | 90 |
| Weight [kg] | 3.9 |
Scope of delivery
Clamping vise incl. reversible jaws grip and operating manual; without torque wrench
