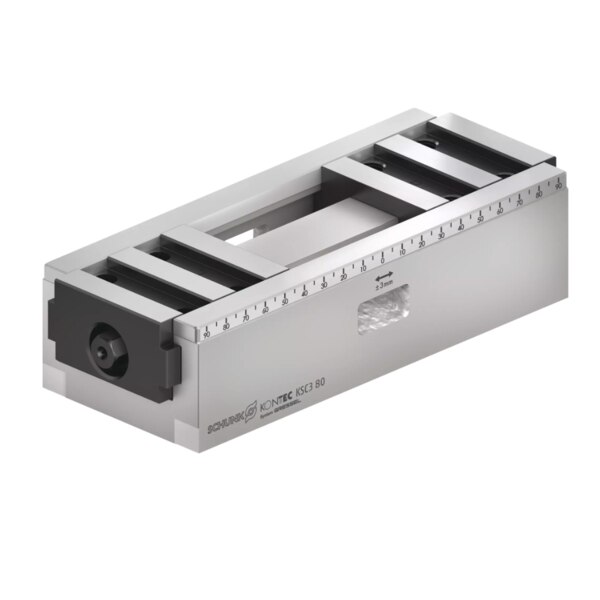

SCHUNK KSC3 80-190-S | Floating
Details
Standard centric clamping vises
Product features:
- Without system jaws
- Floating version
- Nickel-plated base body
Technical data:
- Dimensions: 80 x 190 x 50 mm
- Compensation: ± 3 mm
- Max. clamping force: 25 kN
- Max. torque: 90 Nm
- Weight: 4.5 kg
Clamping vise incl. operating manual; without system jaws, without torque wrench
More Info
Technical details
| Vise width [mm] | 80 |
|---|---|
| Max. clamping force [kN] | 25 |
| Max. torque [Nm] | 90 |
| Length compensation [mm] | ± 3 |
| Weight [kg] | 4.5 |
