WALTER | Turning Insert – Negative rhombic 80° CNMG120408-RM5 WSM10S | TiAlN+Al2O3+(Al) | IC 0.5" | CR 0.032" | Thk 0.187"
Details
CNMG120408-RM5 WSM10S

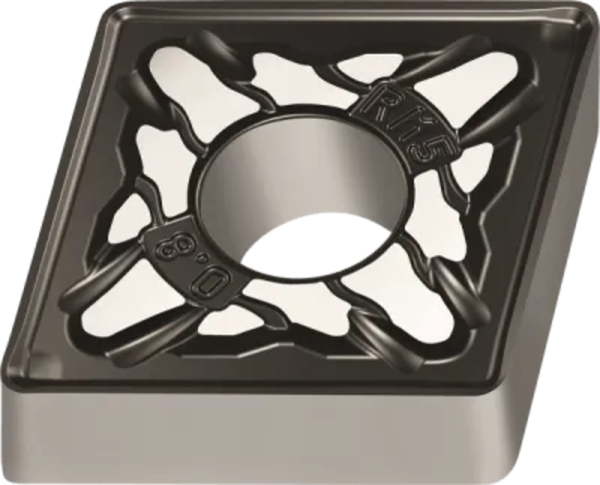

CNMG Turning Insert – Negative rhombic 80°
Tiger·tec® Silver
More Info
| Diameter of inscribed circle | d | 1/2" |
| Corner radius | r | 0.031 " |
| Feed per revolution | f | 0.008–0.016 " |
| Depth of cut | ap | 0.047–0.197 " |
| Cutting Speed | 350–550 sfm | |
| 420–750 sfm | ||
| 100–180 sfm |
