WALTER | Turning Insert – Negative rhombic 80° CNMG120402-FM5 WSM10S | TiAlN+Al2O3+(Al) | IC 0.5" | CR 0.008" | Thk 0.187"
Details

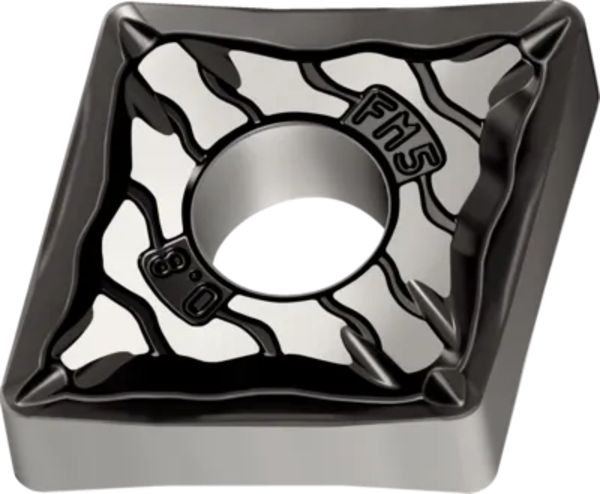

CNMG120402-FM5 WSM10S
CNMG Negative rhombic 80°
Tiger·tec® Silver
| Diameter of inscribed circle | d | 1/2" |
| Corner radius | r | 0.008 " |
| Feed per revolution | f | 0.001–0.004 " |
| Depth of cut | ap | 0.004–0.039 " |
| Cutting Speed | 420–600 sfm | |
| 710–1010 sfm | ||
| 200–270 sfm |
More Info
THE GEOMETRY
- FM5 geometry – finishing stainless materials and high-temperature alloys
- Coolant jet guiding geometry with coolant channel
