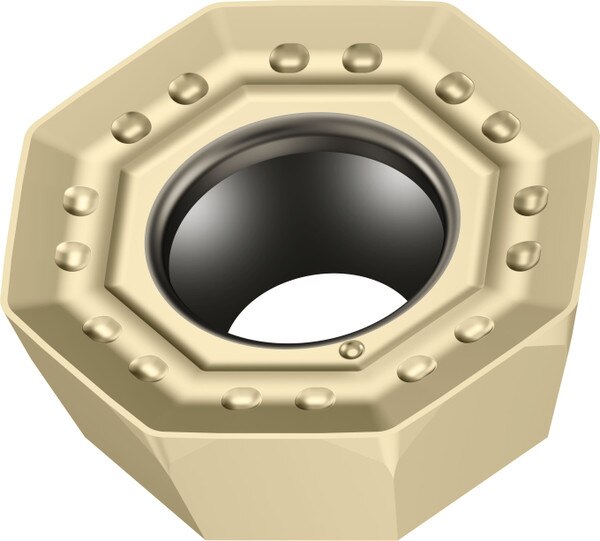

WALTER | Positive octagonal ODMT0504ZZN-F57 WSP45G | TiAlN+Al2O3+(ZrN) | IC 0.5" | CR 0.032" | Thk 0.187"
Details
Details
| Indexable insert tolerance class | Tolerance class | M |
| Number of cutting edges | Number of cutting edges | 8 |
| Cutting edge length | l | 0.207 " |
| Diameter of inscribed circle | d | 1/2" |
| Insert thickness | s | 0.187 " |
| Clearance angle major | α | 15 ° |
| Corner radius | r | 0.031 " |
| Wiper cutting edge length | b | 0.047 " |
