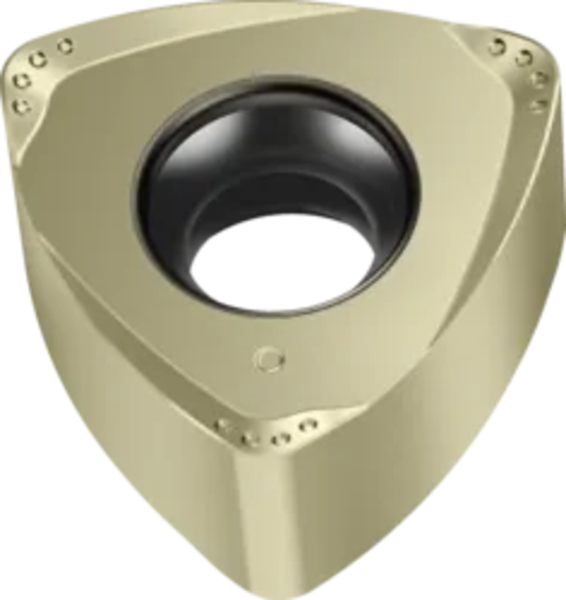

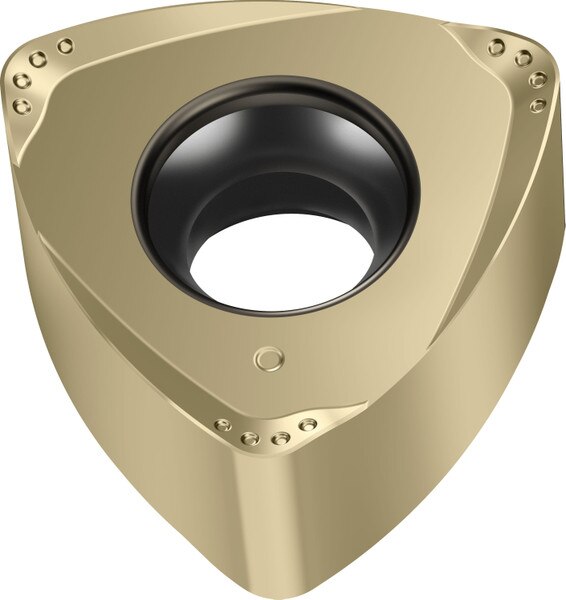

WALTER | Negative triangular P23696-1.0 WSP45G | TiAlN+Al2O3+(ZrN) | IC 0.375" | CR 0.047" | Thk 0.209"
Details
Details

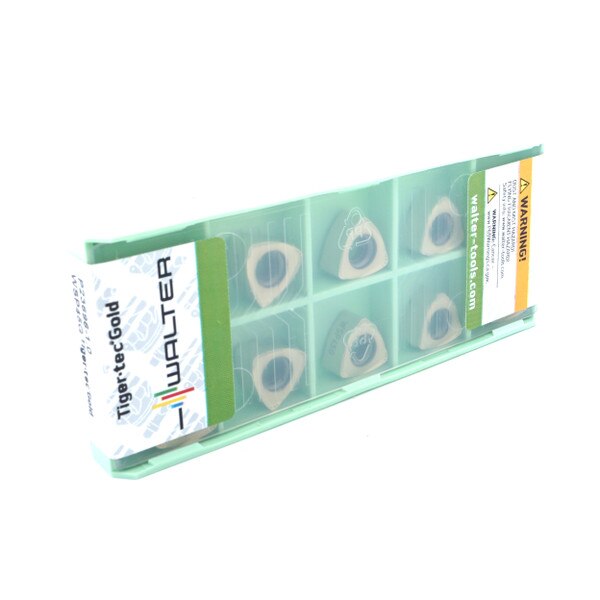

WALTER | P23696-1.0 WSP45G | 10 | .047 R
P23696 Negative triangular | Tiger·tec® Gold
Compatible Cutter: F4030 High-feed milling cutter
| Indexable insert tolerance class | Tolerance class | M |
| Number of cutting edges | Number of cutting edges | 6 |
| Diameter of inscribed circle | d | 0.375 " |
| Insert thickness | s | 0.209 " |
| Corner radius | r | 0.047 " |
