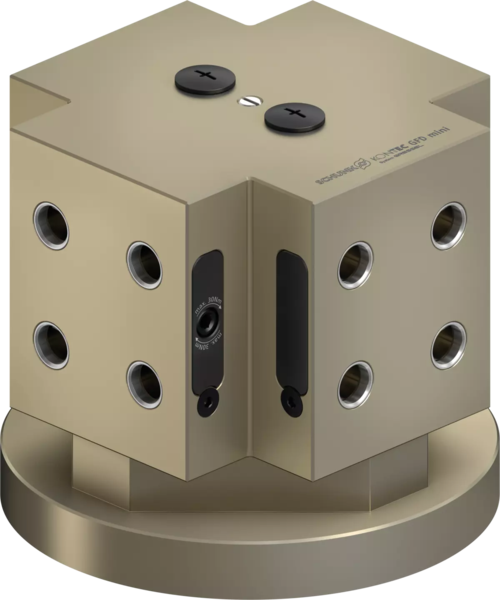

1589816 | GFD mini Ø200-171-4 52 | 4-way tombstone
Details
Manual set-up systems
ID 1589816
Standard manual set-up system
Product features:
- 4-way tombstone
- Manually clamped system
Technical data:
- Dimensions: Ø197 x 171 mm
- Clamping pin pitch: 52 x 52 mm
- Pull-down force: 17 kN
- Max. torque: 30 Nm
- Material: Hard-anodized aluminum
- Weight: 12 kg
More Info
Technical details
| Pull-down force [kN] | 17.0 |
|---|---|
| Max. torque [Nm] | 30.0 |
| Weight [kg] | 12.0 |
Scope of delivery
Tombstone, operating manual; without clamping pins, without clamping device
