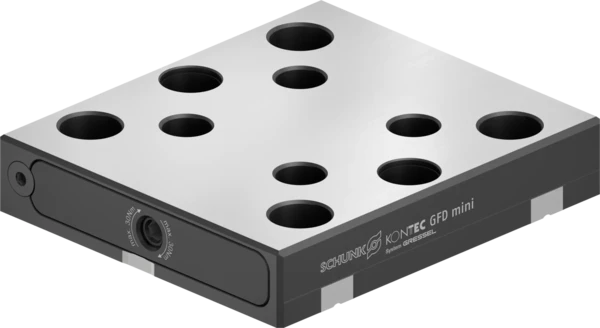

1601994 | GFD mini 130-27-1 96

Details
Standard manual set-up system
Product features:
- 1-way set-up station
- Manually clamped system
Technical data:
- Dimensions: 130 x 148 x 27 mm
- Clamping pin pitch: 96 x 96 mm
- Pull-down force: 17 kN
- Max. torque: 30 Nm
- Material: Stainless steel
- Weight: 3.6 kg
More Info
Technical details
| Pull-down force [kN] | 17.0 |
|---|---|
| Max. torque [Nm] | 30.0 |
| Weight [kg] | 3.6 |
Scope of delivery
Set-up station, operating manual; without clamping pins, without clamping device
