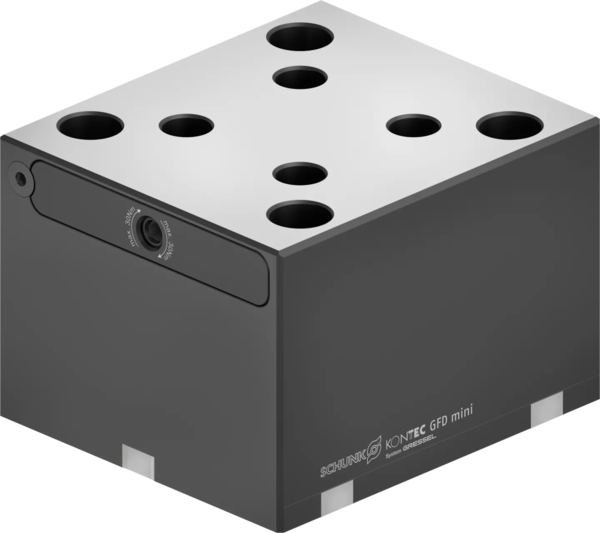

1601996 | GFD mini 130-100-1 52/96 | 5-axis combination set-up station
Details
Manual set-up systems
ID 1601996
Standard manual set-up system
Product features:
- 5-axis combination set-up station
- Manually clamped system
Technical data:
- Dimensions: 130 x 148 x 100 mm
- Clamping pin pitch 1: 52 x 52 mm
- Clamping pin pitch 2: 96 x 96 mm
- Pull-down force: 17 kN
- Max. torque: 30 Nm
- Material: Stainless steel
- Weight: 14.4 kg
More Info
Technical details
| Pull-down force [kN] | 17.0 |
|---|---|
| Max. torque [Nm] | 30.0 |
| Weight [kg] | 14.4 |
Scope of delivery
5-axis set-up station, operating manual; without clamping pins, without clamping device
